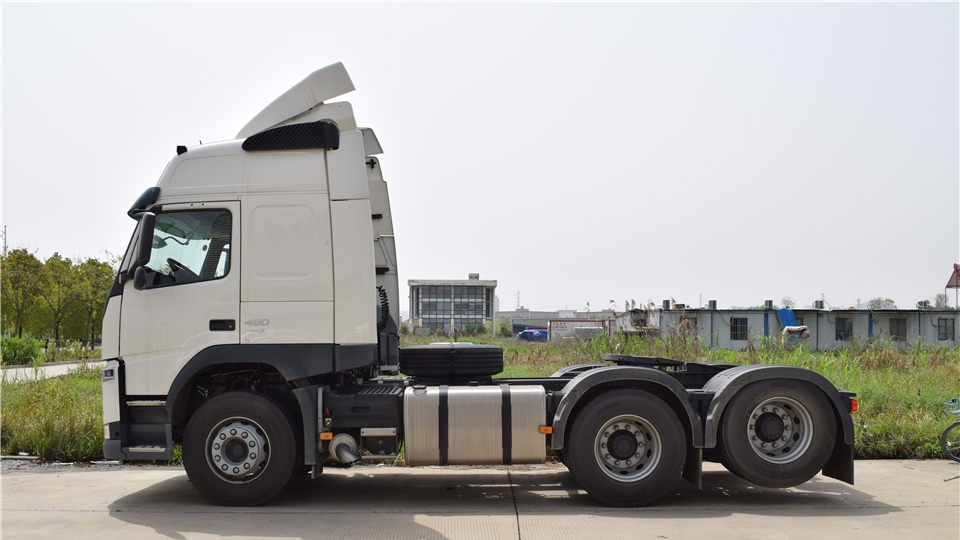

Heavy-Duty Multi-Leaf Air Suspension Guide Arm for Volvo Trucks

Product Overview

Key Features

Superior Load Management:​ Capable of supporting axle loads up to 20 tons, the guide arm evenly distributes weight and prevents axle wrap during acceleration and braking.
Adaptive Ride Comfort:​ The air spring automatically adjusts to payload changes, providing a smoother ride for the driver and reducing cargo damage from road impacts.
Improved Stability and Handling:​ Maintains precise camber and toe angles, enhancing directional control and minimizing tire wear, even under heavy loads or on uneven surfaces.
Extended Service Life:​ The combination of high-strength materials, corrosion protection, and low-friction design significantly reduces maintenance frequency and total cost of ownership.

Technical Specifications

Advanced Hybrid Construction

Multi-Leaf Steel Core:​ The guide arm integrates a high-strength multi-leaf steel spring assembly, constructed from premium alloy steel ( 60Si2Mn, 55CrMnA). The leaves are precision-ground and heat-treated for maximum tensile strength and fatigue resistance, providing a robust base for extreme load-bearing without permanent deformation.
Integrated Air Suspension System:​ Fitted with a high-capacity rubber airbag, the arm dynamically adjusts stiffness and ride height based on payload variations. The air spring ensures consistent ground clearance and superior vibration absorption, isolating the chassis from road shocks and uneven terrain.

Precision Manufacturing for OEM Compatibility

Volvo-Specific Geometry:​ Manufactured using CNC machining and laser-cutting technology, the guide arm replicates Volvo’s OEM suspension mounting points and contours with sub-millimeter accuracy. This guarantees a perfect, bolt-on fit without modifications, preserving factory wheel alignment settings and suspension kinematics.
Corrosion-Resistant Finishing:​ The arm undergoes shot peening to relieve internal stresses, followed by a multi-layer epoxy powder coating or electrophoretic painting. This process provides a durable barrier against moisture, road salt, and chemical corrosion, ensuring long-term performance in harsh environments.

Enhanced Performance and Durability Features

Reduced Inter-Leaf Friction:​ The leaves are separated by low-friction polymer or composite liners, minimizing wear and heat generation during suspension articulation. This design extends service life and maintains consistent damping performance over time.
High-Strength Bushings and Mounts:​ Equipped with precision-machined rubber or polyurethane bushings, the guide arm allows for smooth articulation while isolating vibrations. The mounts are forged for added strength, preventing deformation under high lateral and longitudinal forces.

Applications

• Long-haul freight and logistics vehicles
• Construction and mining trucks
• Specialized heavy transport and vocational vehicles

Quality Control

• Fatigue Testing:​ Simulated load cycles exceeding 1.5 million repetitions to validate durability.
• Static and Dynamic Load Testing:​ Verification of deflection, load capacity, and alignment under varied conditions.
• Environmental Testing:​ Exposure to salt spray, humidity, and temperature extremes to ensure corrosion resistance.

Why Choose Our Multi-Leaf Air Suspension Guide Arm?

• OEM-Level Precision:​ Manufactured to Volvo’s exact specifications for seamless integration.
• Proven Durability:​ Engineered for reliability in the most demanding operating environments.
• Cost-Effective Performance:​ Reduces maintenance costs and extends vehicle uptime, offering a high return on investment for fleet operators.
