Trailer Air Suspension Leaf Spring for Heavy Duty Commercial Vehicles
Looking for a premium-grade Trailer Air Suspension Leaf Spring to replace worn guide arms or upgrade air-ride suspension assemblies on commercial trailers and heavy trucks? Engineered with high-tensile alloy spring steel, precision-rolled eyes, and heavy-duty bushings, our suspension guide springs provide exact axle alignment, superior roll stability, and exceptional flexural fatigue endurance. Certified under strict ISO/TS 16949 quality management systems with European CE compliance, Haishuo supplies high-performance suspension components for international trailer manufacturers, logistics fleets, and commercial spare parts distributors worldwide.
Product Overview
A Trailer Air Suspension Leaf Spring serves as the core structural linkage in pneumatic commercial vehicle suspension systems. Operating in conjunction with air bags and shock absorbers, this heavy-duty spring blade guides vehicle axles, absorbs braking and acceleration torque, and maintains frame height under dynamic payload shifts.
Compatible with leading suspension systems including BPW, SAF, FUWA, Hendrickson, as well as heavy truck platforms like MAN, Volvo, Scania, SINOTRUK HOWO, and SHACMAN, our trailing leaf springs are built for severe-duty service. Each spring undergoes precision CNC taper rolling, computerized heat treatment, shot peening, and protective primer coating to resist extreme structural stress and metal fatigue. We supply direct universal replacements as well as 100% custom-manufactured springs according to client CAD drawings or physical engineering samples.
Applicable Models
Key Features & Product Highlights
-
Wide Multi-Brand Compatibility: Engineered to fit international pneumatic suspension platforms including BPW, SAF-HOLLAND, FUWA, MAN, Volvo, SINOTRUK, and SHACMAN.
-
Precise Axle Guidance & Roll Stability: Holds vehicle axles in true dynamic alignment, preventing axle walk, frame sway, and premature tire wear during cornering.
-
Heavy-Duty Pivot Eye & Pre-Installed Bushings: Precision-rolled spring eyes fitted with high-durability rubber-metal or bronze bushings to minimize joint wear and vibration.
-
High-Tensile Forged Alloy Steel: Manufactured from premium alloy spring steel (60Si2Mn / 51CrV4 / SUP9) for maximum yield strength and flexural resilience.
-
Computerized Thermal Treatment & Shot Peening: Advanced quenching, tempering, and high-stress shot peening eliminate micro-cracks and maximize cycle life for every Trailer Air Suspension Leaf Spring.
-
Anti-Corrosion Surface Finish: Coated with protective gray/white anti-rust primer, black electrophoretic coating (E-coating), or specialized weather-resistant paint to withstand salt spray and road grime.
Technical Specifications
| Item | Specification |
| Product Name | Heavy Duty Trailer Air Suspension Leaf Spring |
| Primary Keyword | Trailer Air Suspension Leaf Spring |
| Compatible Brands | BPW, SAF, FUWA, Hendrickson, MAN, Volvo, SINOTRUK HOWO, SHACMAN |
| Suspension Configuration | Air Suspension Trailing Arm / Guide Spring / Z-Type & Parabolic Formats |
| Eye & Bushing Options | Single/Double Wrapped Eyes with Pressed Rubber-Steel or Bronze Bushings |
| Vehicle Application | Semi-Trailers, Container Chassis, Tankers, Lowbed Rigs, Heavy Commercial Duty Trucks |
| Material Grade | High-Grade Alloy Spring Steel (60Si2Mn / 51CrV4 / SUP9) |
| Manufacturing Process | CNC Hot Rolling, Eye Forming, Heat Treatment, Shot Peening, Primer Coating |
| Surface Finish | Gray/White Anti-Rust Primer / Black Electrophoretic Coating (E-Coating) |
| Quality Certification | ISO/TS 16949 Certified, CE Compliance, SGS Tested |
Vehicle Application & System Compatibility
Our Trailer Air Suspension Leaf Spring units are widely integrated across global transport platforms:
-
Pneumatic Semi-Trailers: Direct fitment for BPW style, SAF type, and FUWA air-ride suspensions used on flatbed trailers, tanker chassis, and refrigerated haulers.
-

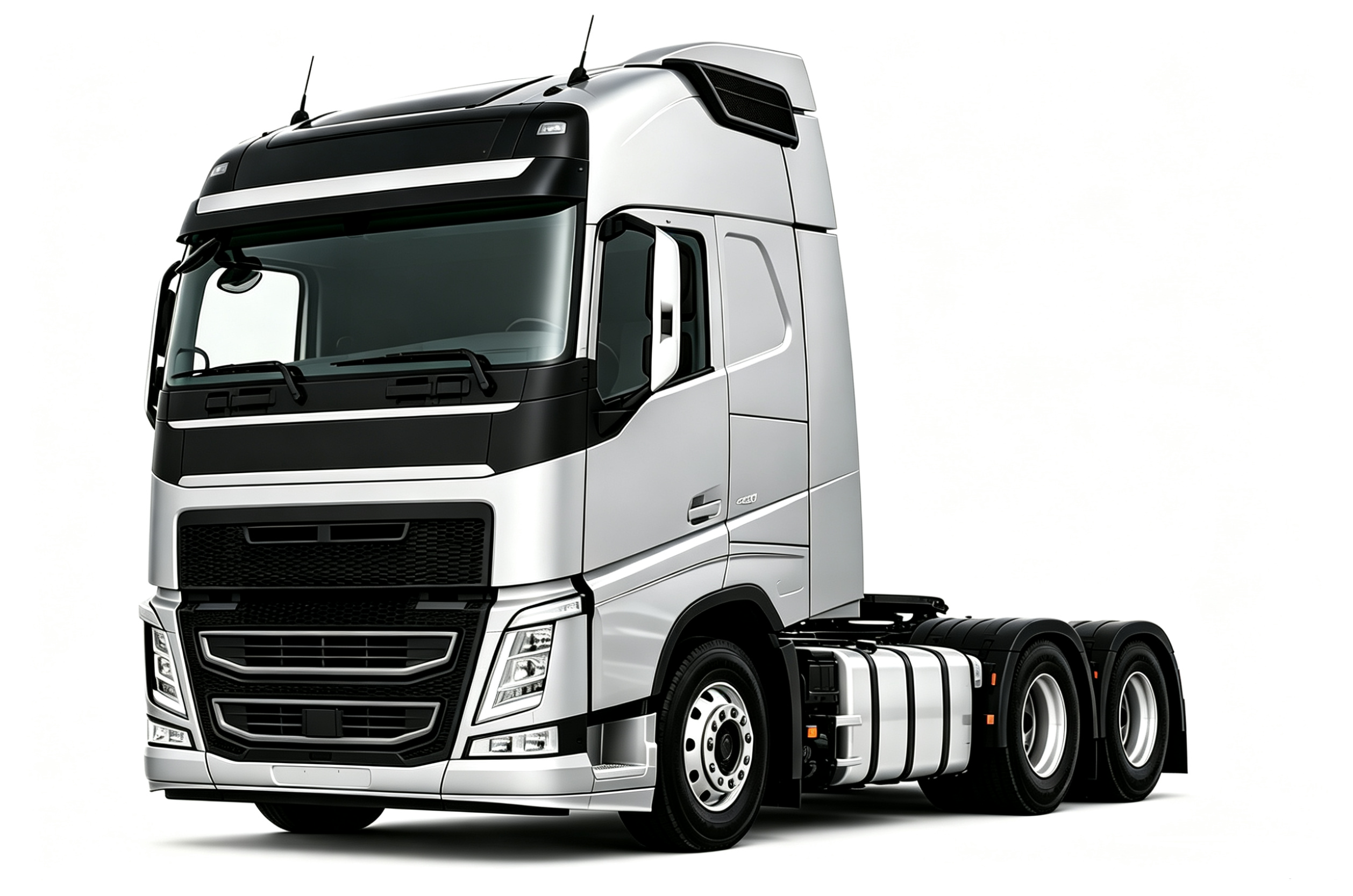

Heavy Commercial Duty Trucks: Compatible with front and rear air-ride guide axles on MAN TGX/TGS, Volvo FH/FM, Scania, SINOTRUK HOWO, and SHACMAN Delong series.
-
Lowbed & Mining Machinery Trailers: Built to endure high dynamic payload impact on multi-axle heavy transport rigs operating in rugged mining and off-road environments.
(Because trailing arm geometry requires exact fitting parameters, please share your OEM part number, CAD drawings, or physical sample dimensions with our technical team.)
Common Signs Your Air Suspension Leaf Spring Needs Replacement
Regular inspection of your trailer’s air suspension springs prevents severe chassis damage and expensive downtime. Replace your Trailer Air Suspension Leaf Spring if you detect any of the following symptoms:
-
Trailer Dog-Tracking or Misalignment: The trailer fails to track straight behind the tractor due to a bent, twisted, or worn guide spring.
-
Misaligned or Tilting Air Bags: Deformed spring geometry causing pneumatic air bags to sit unevenly, resulting in premature bag wall abrasion.
-
Cracks Around Center Clamps or Pivot Eyes: Hairline fractures or visible cracks developing around U-bolt mounting seats or pivot eye areas.
-
Excessive Bushing Play & Metal Clunking: Worn pivot eye bushings causing metal-on-metal noise and harsh vibration during acceleration or braking.
-
Irregular & Rapid Tire Wear: Uneven tire tread wear across trailer axles caused by distorted toe or camber angles.
Technical Inspection & Quality Control
Every Trailer Air Suspension Leaf Spring undergoes strict multi-point quality inspections matching original manufacturer specifications:
-
3D Geometry & Profile Scanning: Precision verification of eye-to-eye center distance, arch curvature, mounting seat flat surfaces, and hole positioning.
-
Bushing Fitment & Retention Test: Hydraulic press testing verifies exact bushing interference fitment and axial retention strength.
-
Hydraulic Load & Fatigue Testing: Tested under high dynamic pressure machinery to confirm elasticity ratings and structural stiffness under payload cycles.
-
Metallurgical & Hardness Testing: Hardness testing verifies uniform heat treatment grain structure across the entire forged spring body.
Manufacturing Process
-
Raw Material Inspection: High-tensile alloy spring steel bars undergo chemical composition analysis and tensile stress testing.
-
CNC Hot Forming & Eye Rolling: Precision heating and hot taper rolling form the exact spring profile, followed by eye rolling and mounting hole drilling.
-
Quenching, Tempering & Shot Peening: Computerized thermal processing maximizes toughness, followed by shot peening to prevent surface micro-cracks.
-
Bushing Pressing & Coating Application: High-durability rubber-metal or bronze bushings are hydraulically pressed before applying anti-rust primer coating to the Trailer Air Suspension Leaf Spring.
-
Final Inspection & Packaging: 100% visual, dimensional, and dynamic load-deflection checks prior to export packaging.
Packaging & Export Shipping
-
Anti-Rust Protection: Treated with rust-inhibiting primer and sealed in heavy moisture-resistant plastic film.
-
Non-Fumigation Plywood Pallets: Secured on heavy-duty non-fumigation export pallets for rapid customs clearance at destination ports.
-
High-Tensile Steel Strapping: Bound firmly with heavy steel bands and protective edge guards to guarantee zero movement during ocean freight.
-
Container Loading Optimization: Customized container space utilization plans to maximize loading capacity in 20ft and 40ft HQ containers.
OEM & Custom Manufacturing Services
We offer complete OEM/ODM production services for trailer builders, axle system integrators, and commercial fleet spare parts wholesalers:
-
Precision manufacturing compatible with BPW, SAF, FUWA, and OEM heavy truck specifications.
-
Custom spring length, width, thickness profiles, arch heights, and bushing materials.
-
Laser brand marking, custom part numbering, and customized export packaging.
Frequently Asked Questions (FAQ)
Q1: Is this leaf spring compatible with standard BPW and SAF trailer air suspensions?
A: Yes! Our Trailer Air Suspension Leaf Spring range includes standard replacement designs fully compatible with BPW, SAF, FUWA, and Hendrickson air suspension systems.
Q2: Can you manufacture custom air suspension springs without an OEM part number?
A: Absolutely. We specialize in custom fabrication and can produce guide springs directly based on your CAD drawings, physical samples, or dimensioned sketches.
Q3: What raw materials are used in manufacturing these air suspension springs?
A: We utilize high-tensile alloy spring steels such as 60Si2Mn, 51CrV4, and SUP9 to guarantee exceptional resilience, structural strength, and long fatigue life.
Q4: Do you supply sample units for fitment testing?
A: Yes, sample orders are available for fleet owners and distributors to verify dimensions, bushing fitment, and dynamic load performance prior to bulk orders.
Q5: What is the standard production lead time for bulk export orders?
A: Standard manufacturing lead time typically ranges from 15 to 25 days depending on total order volume, customized tooling needs, and surface finish choices.
Request a Quote
Keep your truck and trailer fleet operating with ultimate stability and smooth air suspension performance! Contact our technical sales team today to request a competitive wholesale quote for our ISO/TS 16949 certified Trailer Air Suspension Leaf Spring assemblies!
