Heavy Duty Tipper Leaf Spring
Searching for high-capacity Heavy Duty Tipper Leaf Spring assemblies to supply heavy dump trucks, mining tippers, or regional spare parts distribution inventory? Engineered with premium alloy spring steel, multi-layer stacked leaf architecture, and high-precision heat treatment, our tipper spring assemblies deliver maximum payload endurance, extreme shock resistance, and long-term fatigue life under demanding off-road mining and heavy freight conditions. Certified under strict ISO/TS 16949 quality management standards with European CE compliance, SGS Haishuo is a direct OEM factory manufacturer supplying truck builders, fleet operators, and commercial spare parts wholesalers worldwide.
Product Overview
A Heavy Duty Tipper Leaf Spring is designed specifically for extreme payload environments. Dump trucks and heavy tippers operate under severe dynamic stress, carrying dense loads such as iron ore, gravel, sand, and heavy construction debris over rough terrain. To handle these immense static and shock forces, tipper springs feature high-thickness multi-leaf stacks clamped tightly together with heavy-duty center pins and side alignment clips.
Forged from high-tensile alloy spring steel, every tipper leaf spring manufactured by Haishuo undergoes computerized thermal processing, precision CNC forming, and high-stress shot peening to prevent fatigue cracks, metal sagging, or structural failure. Featuring single-rolled eye and slipper-end configurations, these springs integrate seamlessly with heavy axle suspension seats across Southeast Asia, Africa, South America, and the Middle East. We provide direct wholesale bulk manufacturing as well as 100% custom fabrication built strictly according to client CAD drawings, OEM reference numbers, or physical engineering samples.

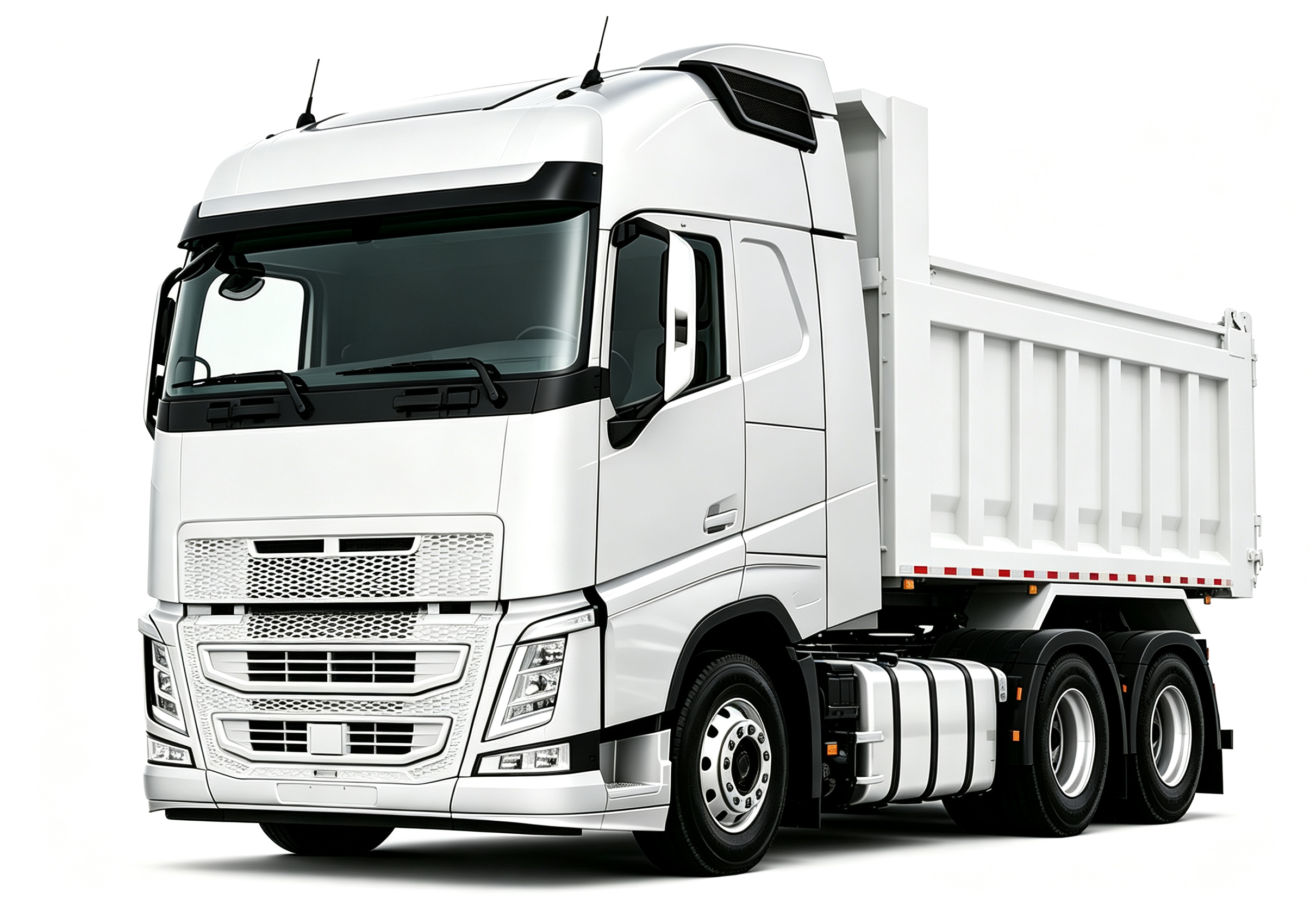

Applicable Models
Key Features & Product Highlights
-
Extreme Payload Capacity: Multi-layered stacked leaf construction absorbs high-tonnage loads and prevents single-leaf overload fracture.
-
Heavy-Duty Alignment Clips & Center Pins: Reinforced side clips prevent leaf fan-out and lateral displacement under extreme off-road articulation.
-
High-Tensile Forged Alloy Steel: Manufactured from premium alloy spring steel (60Si2Mn / 51CrV4 / SUP9) for high yield strength, impact toughness, and flexural durability.
-
Computerized Thermal Treatment & Shot Peening: Advanced quenching, tempering, and surface shot peening eliminate micro-fissures and maximize flexural cycle life for every Heavy Duty Tipper Leaf Spring.
-
Protective E-Coating Finish: Finished with high-durability black electrophoretic coating (E-coating) or heavy anti-rust primer to resist salt spray, mud, and water corrosion.
-
Versatile End Configurations: Engineered with heavy-duty rolled pivot eyes and flat slipper ends for smooth articulation on heavy truck suspension brackets.
Technical Specifications
| Item | Specification |
| Product Name | Heavy Duty Tipper Leaf Spring |
| Primary Keyword | Heavy Duty Tipper Leaf Spring |
| Suspension Application | Heavy Dump Trucks, Mining Tippers, Construction Haulers, Off-Road Rigs |
| End Design | Single Rolled Eye with Slipper End / Double Rolled Eyes |
| Material Grade | Premium Alloy Spring Steel (60Si2Mn / 51CrV4 / SUP9) |
| Manufacturing Process | CNC Shearing, Eye Rolling, Heat Treatment, Shot Peening, E-Coating |
| Surface Finish | Black Electrophoretic Coating (E-Coating) / Anti-Rust Industrial Paint |
| Quality Certification | ISO/TS 16949 Certified, CE Compliance, SGS Tested |
Vehicle Application & Brand Compatibility
Our Heavy Duty Tipper Leaf Spring assemblies are widely compatible with major commercial dump truck brands and heavy axle configurations:
-
Chinese Heavy Tipper Trucks: Direct fitment for SINOTRUK (HOWO 70T/90T Mining Dumper), SHACMAN (F3000/X3000 Tipper), FAW (J6P Dump Truck), FOTON Auman, and JAC.
-
European Heavy Duty Trucks: Compatible with Mercedes-Benz Actros/Arocs dumpers, Volvo FMX, Scania XT series, and MAN TGS tippers.
-
Mining & Off-Road Freight Rigs: Built for heavy multi-axle tippers operating in mining sites, quarries, and construction zones.
(Because tipper spring dimensions vary based on vehicle payload rating and axle model, please share your CAD drawings, OEM reference numbers, or physical sample specs with our engineering team.)
Common Signs Your Tipper Springs Need Replacement
Routine inspection of dump truck leaf springs prevents unexpected axle failure, severe chassis stress, and costly downtime in mining operations. Replace your Heavy Duty Tipper Leaf Spring if you observe the following symptoms:
-
Cracked or Snapped Spring Blades: Visible fractures appearing along main leaves or center bolt zones caused by heavy shock impacts.
-
Permanent Vehicle Leaning or Chassis Sagging: The tipper body sitting visibly unlevel or lower than normal under static load due to lost arch elasticity.
-
Stretched Clips or Shifted Spring Leaves: Individual leaves splaying outward, indicating broken alignment clips or loose U-bolts.
-
Severe Vehicle Sway During Unloading: Excessive frame instability or tipping wobble when raising the hydraulic tipper bucket.
-
Uneven Tire Wear & Axle Misalignment: Rapid tire tread wear on drive axles caused by distorted suspension geometry.
Technical Inspection & Quality Control
Every Heavy Duty Tipper Leaf Spring undergoes multi-stage quality control checks matching strict original equipment tolerances:
-
3D Geometry & Arch Verification: Precision laser checking of total span length, free arch height, blade thickness, and center pin positioning.
-
Hydraulic Load & Deflection Testing: Verified on high-tonnage dynamic hydraulic presses to guarantee accurate spring rate and elastic recovery under max load.
-
Metallurgical & Hardness Testing: Hardness testing verifies uniform heat treatment grain structure and tensile resilience across all stacked leaves.
Manufacturing Process
-
Raw Material Testing: High-tensile alloy spring steel flat bars undergo chemical composition analysis and tensile strength testing.
-
CNC Cutting & Hot Eye Rolling: Precision shearing, end tapering, CNC eye forming, and center bolt hole punching.
-
Quenching, Tempering & Shot Peening: Computerized thermal treatment maximizes structural toughness, followed by shot peening to prevent fatigue micro-cracks.
-
Coating & Assembly: Leaves receive a durable black E-coating before precision assembly with heavy center pins and side alignment clips.
-
Final Inspection & Packaging: 100% visual, dimensional, and dynamic load-deflection checks prior to export shipping.
Packaging & Export Shipping
-
Anti-Rust Protection: Treated with protective rust-inhibiting coating and wrapped in heavy moisture-proof plastic film.
-
Non-Fumigation Plywood Pallets: Secured on heavy-duty non-fumigation export pallets for rapid customs clearance at destination ports.
-
High-Tensile Steel Strapping: Bound firmly with heavy steel bands and protective corner guards to guarantee zero shifting during ocean transit.
-
Container Space Optimization: Customized packing plans to maximize loading capacity in 20ft and 40ft HQ containers.
OEM & Custom Wholesale Manufacturing Services
We offer comprehensive OEM/ODM production services for heavy vehicle assemblers, mining fleet operators, and spare parts wholesalers:
-
Custom spring width, leaf thickness ratios, arch height, and blade stack counts.
-
Customized center pin dimensions, clip hardware styles, and wear pad options.
-
Private labeling, laser brand marking, and customized export packaging.
Frequently Asked Questions (FAQ)
Q1: What makes a tipper leaf spring different from a standard truck spring?
A: A Heavy Duty Tipper Leaf Spring features a thicker, multi-leaf stacked design with reinforced clips to handle extreme dynamic shock loads and heavy payloads in dump truck operations.
Q2: Can you manufacture dump truck springs according to custom OEM part numbers?
A: Yes! We specialize in OEM and custom fabrication. We can produce tipper springs directly based on OEM reference numbers, CAD drawings, or physical samples.
Q3: What steel grades do you use for manufacturing tipper springs?
A: We use premium high-tensile alloy spring steels such as 60Si2Mn, 51CrV4, and SUP9 to guarantee maximum yield strength and fatigue resistance.
Q4: Do you supply sample units for fitment testing?
A: Yes, sample units are available for fleet owners and distributors to verify dimensions, arch height, and load performance prior to bulk container orders.
Q5: What is the standard production lead time for bulk export orders?
A: Standard manufacturing lead time typically ranges from 15 to 25 days depending on total order volume, customized tooling needs, and surface finish choices.
Request a Quote
Equip your dump truck and mining fleet with ultimate suspension strength and payload reliability! Contact our technical sales team today to request a competitive wholesale quote for our ISO/TS 16949 certified Heavy Duty Tipper Leaf Spring products!
