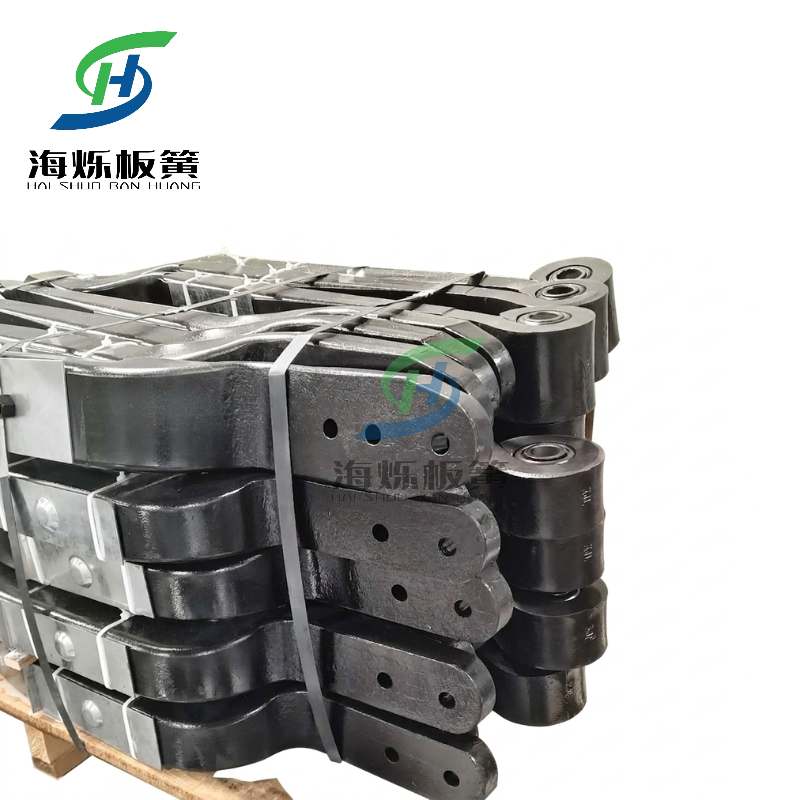

Heavy Duty Air Suspension Trailing Arm XJL-110 (62x70mm Center 575mm)

Looking for a premium performance air suspension trailing arm XJL-110 (62x70mm, center distance 575mm) for commercial heavy-duty trucks and semi-trailers? Our high-capacity air spring guide arm assembly is precision-engineered to deliver maximum load-bearing strength, superior bending resistance, and exceptional fatigue endurance under severe transport and heavy hauling conditions. Certified under strict ISO/TS 16949 quality systems, European CE Certification, and SGS verification, this trailing arm guarantees optimal axle alignment, smooth air suspension response, and reliable vehicle balance.

Product Overview

The air suspension trailing arm XJL-110 (62x70mm, center distance 575mm) is a vital heavy-duty suspension component widely installed on commercial heavy trucks, semi-trailers, and logistics transport vehicles. Forged from high-grade alloy spring steel (60Si2Mn / 51CrV4 / SUP9), this heavy-duty guide arm efficiently absorbs extreme road shocks, guides axle movement, and prevents chassis instability under continuous full-load operational cycles.

Whether operating in severe construction logistics, long-haul freight, or heavy mining environments across Southeast Asia, Africa, South America, and Europe, our air suspension trailing arm XJL-110 ensures reliable performance and reduced fleet downtime. We supply precision-matched aftermarket OEM replacement trailing arms as well as customized suspension components built strictly to technical CAD drawings or physical samples.

Key Features & Product Highlights

• Direct Fit & Specific Dimension: Precision-manufactured to specifications: model XJL-110, cross-section 62×70mm, and center distance 575mm.

• Certified International Quality: Manufactured under ISO/TS 16949 automotive management standards, SGS inspection, and full CE compliance.

• Premium Alloy Steel Construction: Forged from high-tensile 60Si2Mn / 51CrV4 / SUP9 alloy spring steel for maximum load capacity and impact resistance.

• Precision Thermal Treatment: Advanced computer-controlled quenching, tempering, and high-stress shot peening maximize structural elasticity and fatigue service life.

• Robust Heavy-Duty Design: Engineered with heavy-duty bushing eyes and protective wear clips to evenly distribute severe shock loads across the axle and vehicle chassis frame.

• Superior Anti-Corrosion Protection: Finished with high-durability black electrophoretic coating (E-coating) or protective paint to resist weather, road salt, and mud.

• Custom Manufacturing Support: Flexible customization for arm thickness, width, center-to-center hole pitch, bushing diameters, and specialized surface coatings.

Technical Specifications

Vehicle Application & Compatibility

The high-durability air suspension trailing arm XJL-110 (62x70mm, Center 575mm) is widely compatible across various commercial truck and trailer platforms, including:

• Commercial Semi-Trailers: Compatible with BPW type, SAF-HOLLAND, FUWA, and York air suspension systems used in container flatbeds, tankers, and van trailers.

• Heavy-Duty Commercial Trucks: Fits rear axle air suspension setups for Chinese trucks  as well as European platforms .

• Custom Fleet Engineering: Custom-manufactured according to customer technical CAD drawings, physical samples, or specific center-to-center mounting hole dimensions.

To ensure accurate fitment for your vehicle fleet, please confirm your technical drawings, center hole distances, or OEM reference numbers with our engineering team prior to placing an order.

Technical Inspection & Quality Control

Our manufacturing facilities strictly comply with ISO/TS 16949 automotive production guidelines. Quality control is integrated into every stage to ensure consistent performance for every air suspension trailing arm XJL-110:

• Dimensional Accuracy Checks: Comprehensive gauge testing for 575mm center-to-center pitch, 62x70mm cross-section, bushing inner diameter, and overall length.

• Load & Bending Resistance Testing: Verified on hydraulic press testing machinery to ensure compliance with design load-deflection and structural yield standards.

• Metallographic & Hardness Testing: Metallurgical analysis confirms optimal heat treatment grain structure and uniform surface hardness across all components.

Manufacturing Process

Our facility operates advanced commercial vehicle suspension production lines matching ISO/TS 16949 quality norms:

1. Material Testing: Certified alloy spring steel raw materials undergo strict chemical composition and tensile strength checks.

2. Precision Forging & CNC Punching: High-precision forging and CNC punching ensure exact hole positioning, smooth contours, and clean edges.

3. Heat Treatment & Shot Peening: Computerized thermal quenching and tempering maximize material toughness, followed by shot peening for long fatigue life.

4. E-Coating & Assembly: Corrosion-resistant electrophoretic coating (E-coating) is applied before fitting high-durability rubber or poly bushings and protective wear clips.

5. Final QC & Packaging: 100% visual, dimensional, and load test inspection prior to export packing.

Packaging & Export Shipping

To ensure your air suspension trailing arm XJL-110 shipment arrives in perfect condition during ocean transit, we enforce strict export packaging standards:

• Anti-Rust Protection: Treated with rust-inhibiting coatings and wrapped in durable waterproof plastic wrap film.

• Non-Fumigation Export Pallets: Securely bundled on heavy-duty non-fumigation plywood pallets with protective wooden blocks and corner guards, ensuring seamless international customs clearance without fumigation delays.

• High-Tensile Steel Strapping: Bound tightly with heavy steel bands to prevent displacement during ocean freight.

• Container Optimization: Custom container loading plans maximize weight efficiency in 20ft and 40ft containers.

OEM & Custom Manufacturing Services

We are an ISO/TS 16949, CE, and SGS certified commercial vehicle suspension manufacturer catering to international auto parts distributors, fleet owners, and repair workshops.

We offer full OEM customization capabilities for air suspension trailing arms:

• Custom thickness, width (e.g., 62x70mm, 56x100mm), arch depth, and hole center spacing (e.g., 550mm, 575mm).

• Specialized bushing sleeves, mounting brackets, and hardware compatibility.

• Private labeling, custom stenciled part marking (e.g., model & center distance), and customized export packaging.

Maintenance & Installation Guidelines

Proper handling and routine care maximize the operational service life of your air suspension trailing arm XJL-110 assembly:

• Professional Fitting: Have a certified technician install the trailing arm adhering strictly to factory torque settings for pivot bolts and mounting brackets.

• Torque Retightening: Inspect and re-tighten mounting bolts and U-bolts after initial operating hours under full load conditions.

• Routine Visual Checks: Regularly inspect rubber bushings, mounting holes, and welds for signs of wear, movement, or fatigue cracking.

• Corrosion Inspection: Touch up protective coating if operating in highly humid, icy, or chemically aggressive environments.

Frequently Asked Questions (FAQ)

Q1: Is this air suspension trailing arm XJL-110 certified for international quality compliance?

A: Yes! Our factory operates under ISO/TS 16949 quality standards, and our commercial vehicle suspension products carry European CE certification and SGS inspection reports.

Q2: Can you manufacture this trailing arm with different specifications (like 56x100mm Center 550mm)?

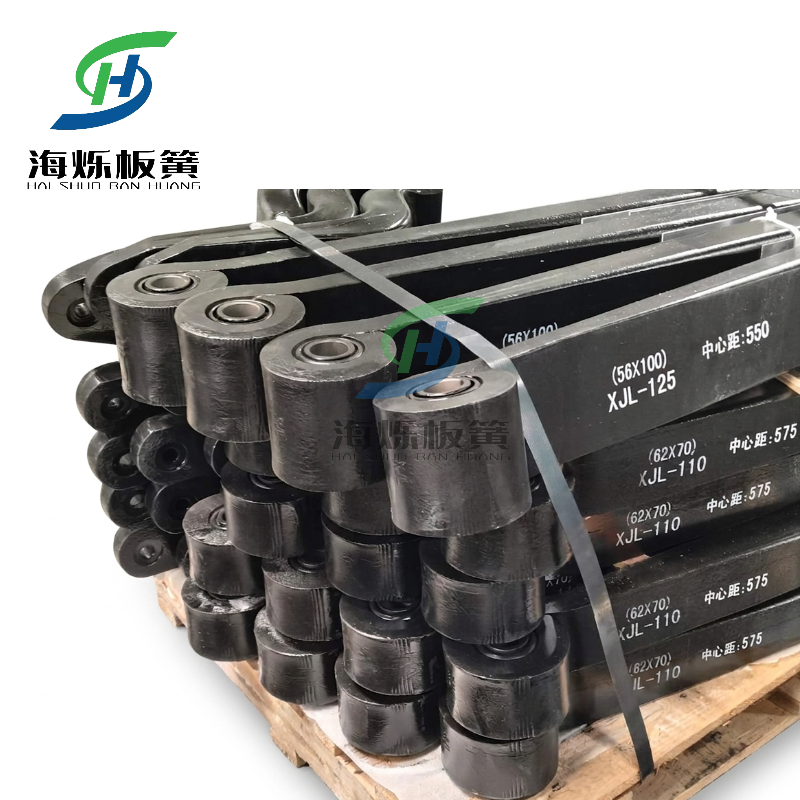

A: Yes! As shown in our production batches, we manufacture various specs including XJL-110 (62x70mm, center 575mm) and XJL-125 (56x100mm, center 550mm), as well as fully custom CAD drawing orders.

Q3: How can I request a wholesale quotation for the air suspension trailing arm XJL-110?

A: Send us your required quantities, target model/drawings, and destination shipping port to receive a fast, competitive price quote within 12 hours!
