Knowing How to Choose the Right Leaf Spring is one of the most critical decisions for maintaining commercial vehicle safety, driving stability, and overall suspension longevity. While understanding basic suspension mechanics provides a solid foundation, choosing the correct replacement or custom spring pack requires a deeper look at real-world application demands.

Using an improper leaf spring setup can lead to premature sagging, reduced payload capacity, or even sudden catastrophic breakage under heavy loads. This comprehensive guide walks you through the key evaluation factors necessary to select the perfect leaf spring configuration for your trucks, trailers, and commercial fleets. By understanding these selection parameters, buyers can ensure optimal suspension efficiency, reduce vehicle downtime, and maximize long-term operational savings.

Multi-Leaf vs. Parabolic Leaf Springs

When choosing suspension components, the primary decision usually comes down to selecting between traditional multi-leaf springs and modern parabolic leaf springs. Both designs serve distinct operational needs across commercial transport:

Multi-Leaf Springs for Extreme Durability: Traditional multi-leaf designs consist of several stacked steel plates that taper in length. This rigid, heavy-duty structure excels at carrying massive payloads over rough terrain, mining sites, and construction zones where structural tolerance and high overload capacity are paramount.

Parabolic Leaf Springs for Highway Efficiency: Modern parabolic leaf springs feature fewer, specially tapered leaves that touch only at the center and ends. By drastically reducing friction between individual leaves, they deliver a smoother ride, lower overall chassis weight, and better fuel savings for long-haul highway transport and modern trailers.

Key Parameters Needed for Custom and Replacement Orders

When learning how to choose the right leaf spring for replacement or OEM custom orders, precise measurements and clear technical communication are essential, clear technical communication is essential. Professional buyers should gather and specify the following core specifications:

• Center Distance: Measure the exact length along the main leaf from center eye to center eye to ensure proper axle positioning.
• Width and Stack Thickness: Measure the overall width of the spring steel and the combined thickness of individual leaves across the pack.
• Free Camber (Arc Height): Provide the exact vertical distance from the center eye line to the top of the main leaf to maintain correct vehicle ride height.
• Bushing and Hardware Fits: Specify inner bushing diameters, eye configurations, and center bolt locations to prevent alignment issues during assembly.

Communicating these technical parameters clearly with your supplier guarantees that delivered spring assemblies meet exact load requirements and fit directly onto the axle without costly site modifications.

How to Choose Based on Application and Load Capacity

Matching the leaf spring configuration to your vehicle’s specific operational environment and Gross Vehicle Weight Rating (GVWR) is critical for long-term performance. Light and medium-duty commercial vehicles typically perform best with flexible parabolic setups or light multi-leaf packs. These configurations provide an optimal balance between empty ride comfort and sufficient load support during daily routes.
In contrast, heavy-duty semi-trailers, rear axles, and heavy-haul dump trucks demand high-capacity multi-leaf assemblies engineered from premium alloy steels like 60Si2Mn or SUP9. These high-grade spring steels undergo rigorous heat treatment and shot peening to resist permanent deformation under severe operational stress. Understanding how to choose the right leaf spring ensures your fleet operates with maximum efficiency under high load demands.

Partnering with a Reliable Manufacturer for Wholesale and OEM Solutions

When learning how to choose the right leaf spring for bulk OEM orders, sourcing directly from a specialized manufacturer provides significant advantages in raw material quality control, international compliance, and competitive factory-direct pricing. Factory-direct manufacturing ensures that every spring pack undergoes strict dimensional checks, hardness testing, and load performance evaluations before shipment.

Whether you require standard OEM replacements for European and Asian truck models or fully customized suspension designs, working with an experienced manufacturer streamlines your supply chain. Zhengzhou Haishuo Automotive Parts Co., Ltd. specializes in OEM replacement leaf spring assemblies, parabolic springs, and custom suspension components for global markets.

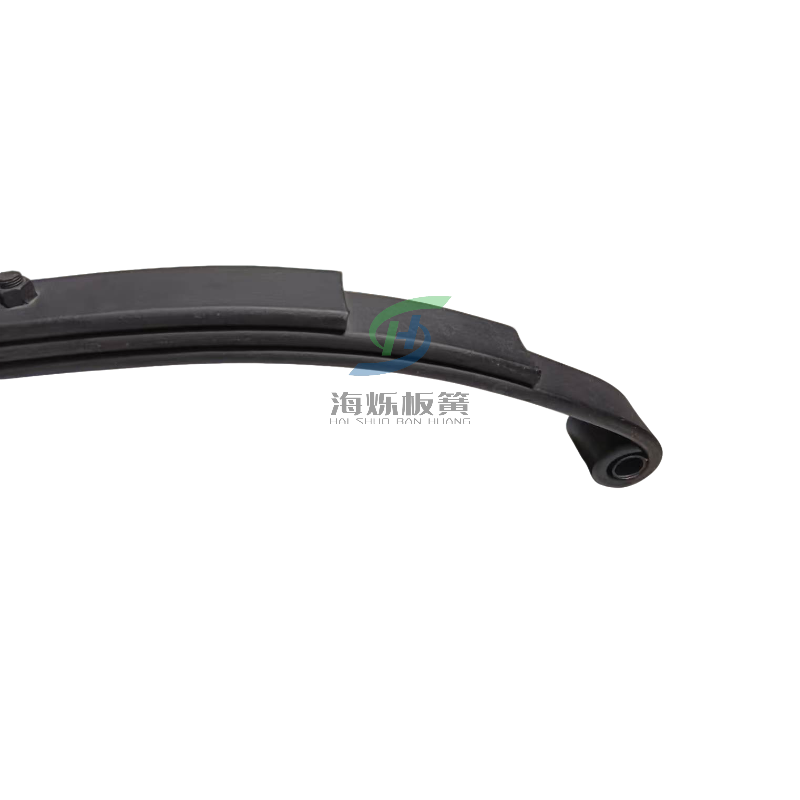

A leaf spring is an elastic suspension component manufactured from one or multiple layers of curved spring steel strips, designed to absorb vertical loads and road impacts during vehicle operation.  A complete truck suspension system is usually installed between the vehicle axle and frame through U-bolts, spring hangers, and bushings. The main functions of these suspension components include:

1. Supporting Vehicle Load

Leaf springs carry the weight of the vehicle body, cargo, and axle loads while maintaining proper suspension height.

2. Absorbing Road Shock

When a truck travels on uneven roads, the suspension spring flexes to absorb impact energy and reduce vibration transferred to the chassis.

3. Maintaining Vehicle Stability

A properly designed suspension  system improves handling stability and keeps the axle correctly positioned.

4. Connecting Axle and Chassis

These components work as both a spring element and locating component, controlling axle movement within the suspension system.

Common applications include:
Heavy-duty trucks
Tractor trucks
Semi-trailers
Dump trucks
Construction vehicles
Commercial vehicles

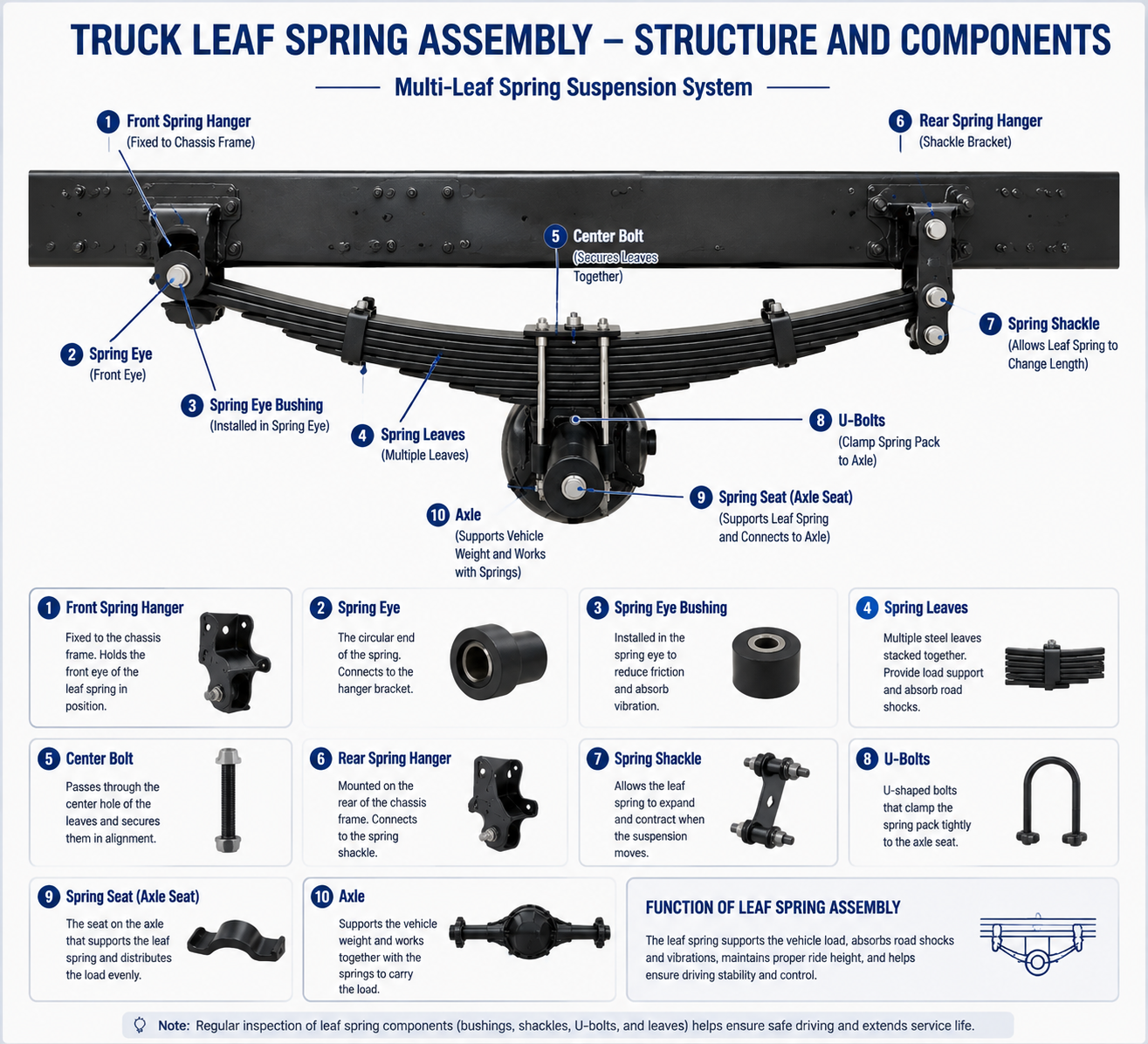

2. Structure of a Truck Leaf Spring Assembly

A typical truck suspension system consists of several spring leaves and suspension accessories.

2.1 Spring Leaves

The main load-bearing components of the assembly are called spring leaves. For a traditional multi-leaf spring, several steel leaves with different lengths are stacked together.
Main components include:
Master Leaf / Main Leaf
The longest leaf in the assembly, usually equipped with spring eyes at both ends.
Functions: Connects the spring assembly to the suspension hanger
Transfers vehicle load
Provides structural support
Graduated Leaves
Shorter leaves positioned below the master leaf.
Functions: Increase load-carrying capacity
Distribute stress between leaves
Improve spring durability

2.2 Spring Eyes

The curled ends of the master leaf are called spring eyes or eye ends. They are used for mounting the leaf spring assembly to the vehicle chassis through bushings and hangers. Types include: Open eye ，Double wrapped eye ，Berlin eye

2.3 Center Bolt

The center bolt (also called spring center bolt) is used to align and clamp all leaves together.
Functions: Keeps leaves correctly positioned /Maintains spring alignment /Prevents leaf movement during operation

2.4 U-Bolts

U-bolts are used to secure the suspension system to the vehicle axle.
Functions: Clamp the spring pack to the axle seat/ Ensure a stable axle-to-spring connection /Prevent suspension movement under heavy loads

2.5 Bushings

Leaf spring bushings are installed inside the spring eyes.
Functions: Reduce friction/ Absorb vibration/ Minimize suspension noise /Extend component service life

3. Types of Truck Leaf Springs

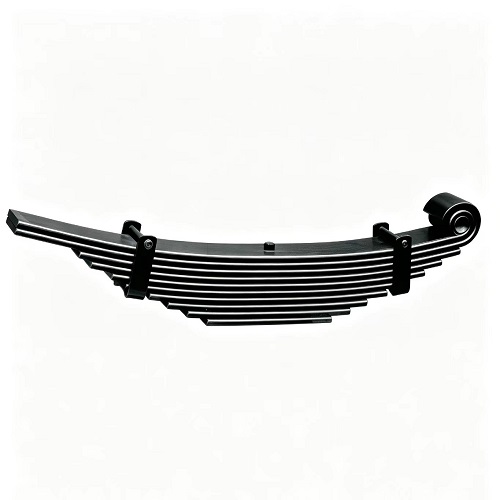

3.1 Multi-Leaf Spring

A multi-leaf spring consists of multiple spring leaves stacked together to provide high load capacity.
Advantages: High load-carrying capacity/ Excellent durability/ Strong resistance to overload conditions /Long fatigue life
Applications: Heavy-duty trucks/ Trailer suspension systems /Mining vehicles /Engineering vehicles

3.2 Parabolic Leaf Spring

A parabolic leaf spring features a variable thickness design, where the thickness gradually decreases from the center section toward both ends.
Compared with conventional multi-leaf springs:
Advantages: Reduced unsprung weight/ Lower inter-leaf friction/ Improved ride comfort /Better suspension response/ Reduced maintenance requirementsApplications: European trucks /Modern commercial vehicles/ Medium and heavy-duty trucks

4. How Do Leaf Springs Work?

Leaf springs operate based on elastic deformation.

The working process:Road Impact → Spring Deflection → Energy Storage → Energy Release → Vehicle Stability

When the wheel encounters bumps or uneven surfaces:
1.  The axle moves upward.
2.  The leaf spring bends and absorbs impact energy.
3.  The stored energy is gradually released.
4.  Vehicle vibration and shock are reduced.
A high-quality leaf spring assembly helps:
1.   Improve suspension performance
2.  Protect chassis components
3.  Increase driving comfort
4.  Extend vehicle service life

5. Leaf Spring Materials

High-performance leaf springs require special alloy spring steel with excellent mechanical properties.
Common materials include:
60Si2Mn Spring Steel
Widely used for truck leaf springs.
Properties:
1.  High tensile strength
2.  Excellent elasticity
3.  Good fatigue resistance
SUP9 Spring Steel
Common automotive spring material.
Properties:
1.  High hardness
2.  Good wear resistance
3.  Strong impact resistance
SUP11A Spring Steel
Used for demanding heavy-duty applications.
Properties:
1.  Excellent fatigue performance
2.  High durability
3.  Stable mechanical properties
A reliable leaf spring requires:
1.  Proper material selection
2.  Accurate heat treatment
3.  Shot peening process
4.  Strict quality inspection

6. Common Signs of Leaf Spring Failure

During long-term operation, leaf springs may experience fatigue damage.
Common failure signs include:
Broken Spring Leaves
Cracks or broken leaves can reduce the load capacity of the suspension system.
Vehicle Sagging or Leaning
A damaged spring pack may cause uneven vehicle height.
Reduced Load Capacity
Worn leaf springs may not support rated payload requirements.
Abnormal Suspension
Noise may come from:
1.  Damaged spring leaves
2.  Worn bushings
3.  Loose U-bolts
Regular inspection and timely replacement help prevent unexpected suspension failures.

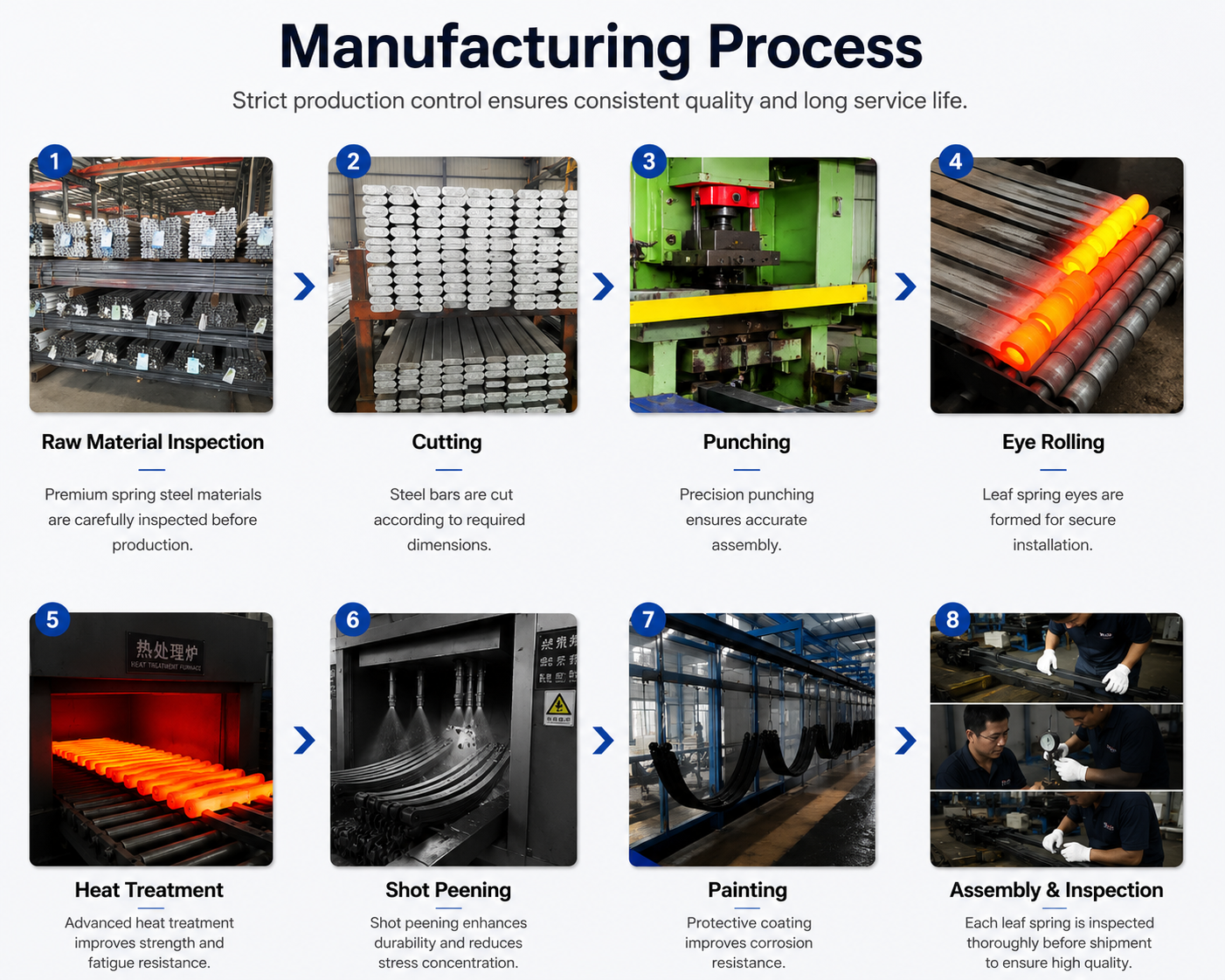

7. Leaf Spring Manufacturing Process

A professional leaf spring manufacturer follows strict production procedures:
Steel Cutting
Cut spring steel plates according to design specifications.
Punching and Forming
Produce spring eyes and shape the leaves.
Heat Treatment
Improve hardness, strength, and fatigue resistance.
Shot Peening
Enhance fatigue life by creating compressive stress on the spring surface.
Surface Treatment
Apply painting or electrophoretic coating (E-coating) for corrosion protection.
Quality Inspection
Check:
Dimensions
Hardness
Load performance
Surface quality

8. Why Choose a Professional Leaf Spring Manufacturer?

Choosing the right leaf spring supplier is essential for reliable suspension performance.
Zhengzhou Haishuo Automotive Parts Co., Ltd. specializes in:
1.  OEM replacement leaf spring assemblies
2.  Multi-leaf springs
3.  Parabolic leaf springs
4.  Customized suspension springs
With advanced production capabilities and strict quality control, we provide reliable truck suspension solutions for global aftermarket customers.
